Polish Liability Insurance

Description

The Polish Liability Insurance process describes the process, which determines the price for the liability insurance for protecting against third party insurance claims. Because the insurance price is determined based on some data from a user, the first task (Enter car and driver data) requires interaction with a user i.e. entering the input data. Further tasks determine the insurance price: the base price is calculated first, then the calculated insurance premium can be increased or decreased, and finally, all discounts are taken into account and the final price for insurance is calculated.

Model

BPMN Diagram types: Process,

Source files: plli.sgx, plli.bpmn plli-all.pdf
Diagram files: plli.svg, plli.pdf

Plli Bimloq case BPMN model

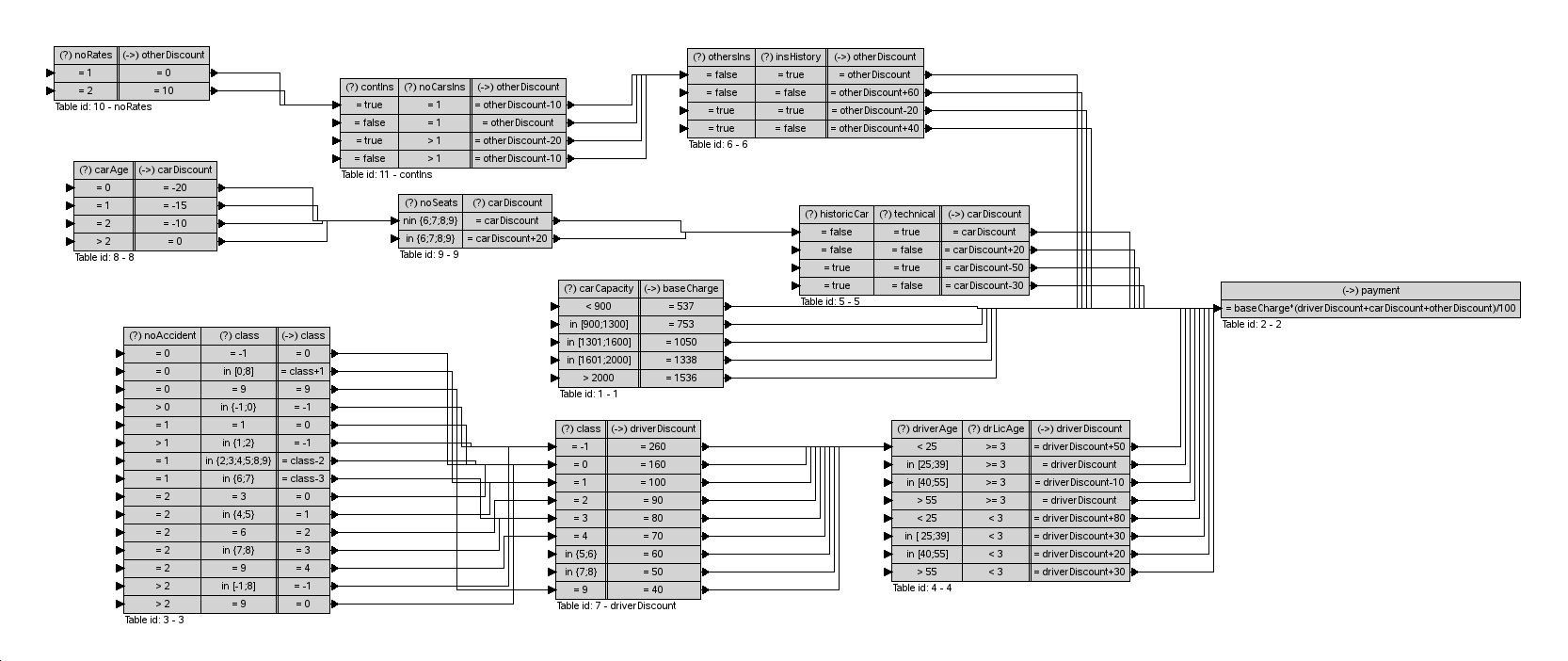

Model logic

XTT2 logic model: plli_xtt.hml

Model metrics

AbbreviationNameValue
CNCCoefficient of Network Complexity1.38
ICInterface Complexity Metric6.0
NOANumber of Activities in a Process Metric6.0
NOACNumber of Activities and Control Flow Elements in a Process Metric10.0
NOAJSNumber of Activities, Joins and Splits in a Process Metric8.0
DSMDurfee Square Metric2.0
PSMPerfect Square Metric4.0
ALLAll Elements21.0
